TP-Link Omada SG3452XMPP Managed Switch

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Productomschrijving

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

4× 10 Gbps SFP+ slots
8× Gigabit 802.af/at/bt PoE++ poorten (Maximaal 90 W PoE-budget per poort)
40× Gigabit 802.3af/at PoE+ poorten (Maximaal 30 W budget per poort)
750 W totaal PoE-budget*
Gecentraliseerd cloudbeheer via het web of de Omada app†
Standalone beheer via web, CLI, SNMP, en RMON
Static Routing helpt intern verkeer te routeren voor hogere efficiëntie
VLAN, ACL, QoS, IGMP Snooping, OAM, en DDM
ERPS ondersteunt snelle bescherming en herstel in een ringtopologie
Duurzaam metalen behuizing en rack-mountbare ontwerp

Eigenschappen

Hogekracht-apparaten van stroom voorzien met Gigabit PoE++ poorten
Bouw eenvoudig een volledig 10G Multi-gigabit netwerk
Software Defined Networking (SDN) met Cloud-toegang
Meerdere toepassingsscenario’s

Technische specificaties

Functionaliteit van de Hardware

Interface	• 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+) • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Ventilator Aantal	3
Physical Security Lock	√
Uitgangsvermogen	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	• Standard: 802.3at/af/bt compliant • PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port) • PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port) • Power Budget: 750 W*
Afmetingen ( B x D x H )	17.3×13.0×1.7 in (440×330×44 mm)
Montage	Rack Mountable
Max Power Consumption	• 913.4 W (110V/60Hz) (with 750 W PD connected)
Max Heat Dissipation	• 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected)

Prestatie

Schakelvermogen	176 Gbps
Packet Forwarding Tarief	130.9 Mpps
MAC Address Table	16 K
Packet Buffer Geheugen	12 Mbit
Jumbo Frame	9 KB

Functionaliteit van de Software

Kwaliteit van de Dienst (QoS)	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Kenmerken	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast	• Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
Geavanceerde Functies	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
ISP Features	• L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow
VLAN	• VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN: VLAN Mapping, VLAN Replace • Voice VLAN
LijstToegangsbeheer	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN
Veiligheid	• IP-MAC-Port Binding - 512 Entries • DHCP Snooping • ARP Inspection • IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries • DHCPv6 Snooping • ND Detection • ND Snooping • IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode • 802.1X: Port-based authentication, Mac-base authentication, VLAN Assignment, MAB, Guest VLAN, Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

Beheer

Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 • Trap/Inform • RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log

Overige

Certificatie	CE, FCC, RoHS

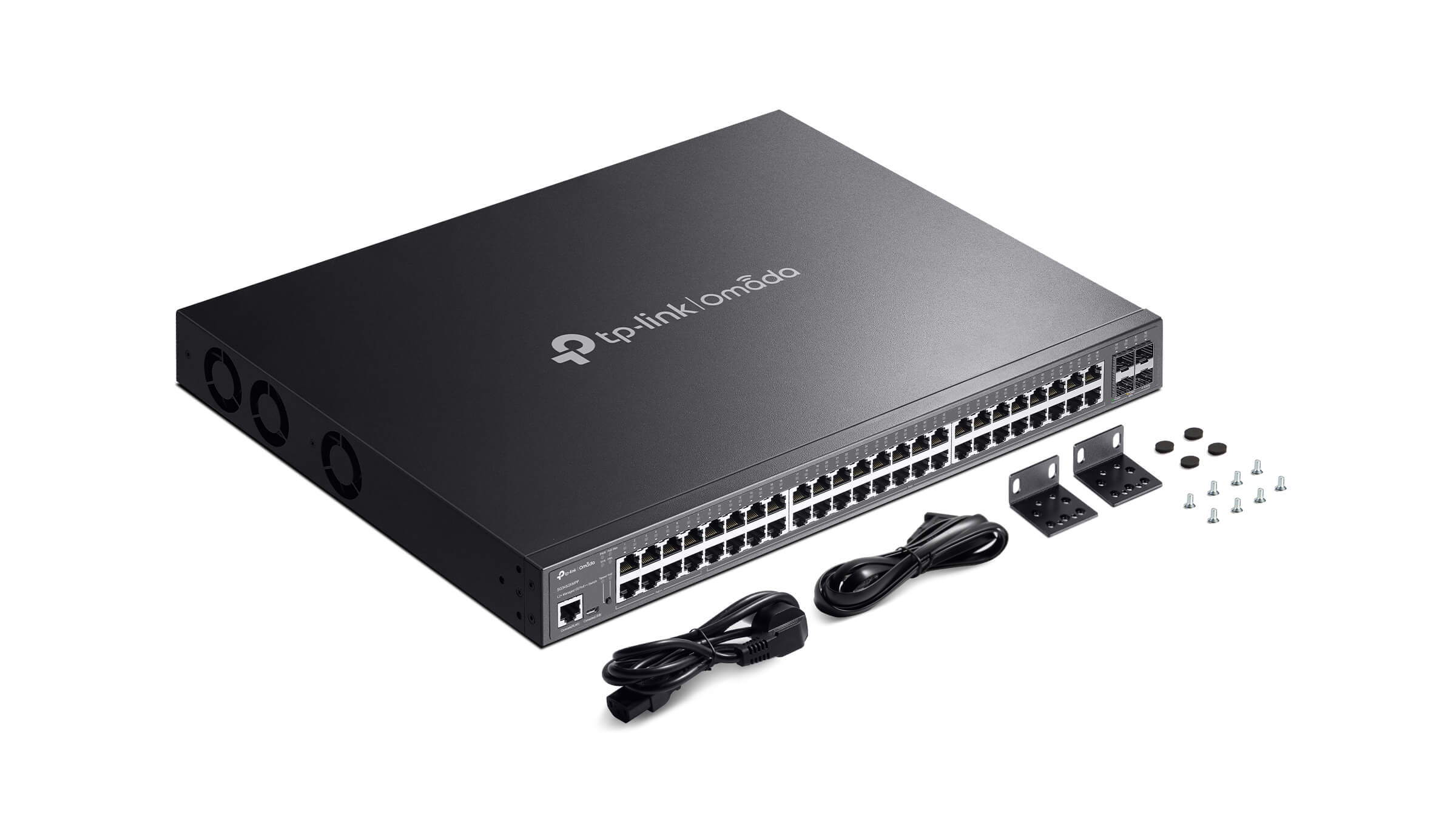

Pakketinhoud	• SG3452XMPP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
Systeemvereisten	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Omgeving	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Downloads

SG3452XMPP Datasheet ⬇️
